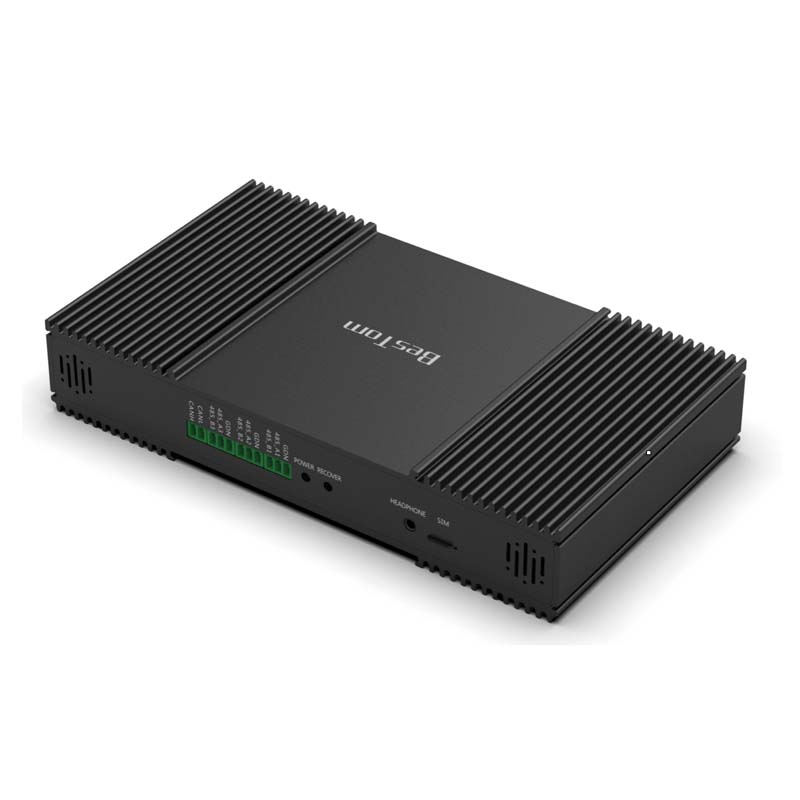

| AI BOX | RK3399PRO+1808 |
| 内存 DDR | 5G |
| 存储 EMMC | 32G Optional |
| TOPs | MAX 9TOps |
| 4G | LTE |
| 双网口 Dual Ethernet ports | 支持Support |
| HDMI | 支持 Support |
| RS485 | 支持 Support |
| RS232 | 支持 Support |
| CAN | 支持 Support |
| WiFi6 | 可选 Optional |
| 多MICMulti MIC | 支持 Support |
| 其他Others | USB3.0, etc. |
rk3399Pro 详细参数
- Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz - NPU up to 3.0TOPS
- Mali-T860MP4 GPU
- Dual-channel DDR3/DDR3L/LPDDR3/LPDDR4
- 4K UHD H265/H264/VP9
- HDR10/HLG
- H264 encoder
- Dual MIPI CSI and ISP
- USB Type-C
rk1808 详细参数
- Dual Cortex-A35 up to 1.6GHz
- High Performance NPU
- 2MB System SRAM
- 1080P@60FPS H.264 Decoder, 1080P@30FPS H.264 Encoder
- Video In: MIPI-CSI/BT.656/BT.1120
- Video Out: 1080P MIPI-DSI/RGB
- Audio: 8-channel I2S/PDM with VAD for Voice Detection
- High-speed Interface: USB3.0/PCIe2.1/RGMII
- RK1808 Support Cascade
